Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand

Name: Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PAPC Compatible JINTONG Brand
Brand: JINTONG
Price: 24 USD

plastic processed : PC, PA, BMC

style : VERTICAL

plasticizing capacity(g/s) : 150

mold height(mm) : 260 - 450 mm(10.24-17.72in)

ejector number : 1

ejector stroke(mm) : 45

ejector force(kn) : 13

theoretical shot volume(cm³) : 175

injection rate (g/s) : 177

machine type : Hydraulic

injection weight (g) : 320

screw speed (rpm) : 1 - 200 rpm

screw diameter (mm) : 45

Screw L/D Ratio : 22

distance between tie bars : 460

weight (kg) : 2300

Place of Origin : Guangdong, China

open stroke(mm) : 400

Model Number : JTT-1200D

Brand Name : JINTONG

power (kw) : 22.5

warranty : 1 Year

key selling points : High Safety Level

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, PLC, Pressure Vessel, Engine

Opening Stroke : 250mm

After-sales Service Provided : Engineers available to service machinery overseas

screw diameter : 35mm 40mm 45mm

screw stroke : 140mm

Product name : Single Shuttle Slider Hydraulic Vertical Plastic Injection JTT-1200D

platen size : 840*500mm

max daylight : 500mm

min old height : 250mm

MOQ : 1

Price : $24,200-25,000

Contact Now

Get the Hightlights

Vertical clamping, vertical injection D single slide table(one up die and one low die)
clamping force: 120T
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift;
oil hydraulic unit under low die to ejector finshed products;
ejector speed and stroke adjusted by actual demand Combined with conveyor system used on production line

CUSTOMIZATION CAPABILITIES

PRODUCTION WORKFLOW

DETAIL SHOT

ABOUT THE SUPPLIER

Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.

COMPANY OVERVIEW

COMPETITIVE ADVANTAGES

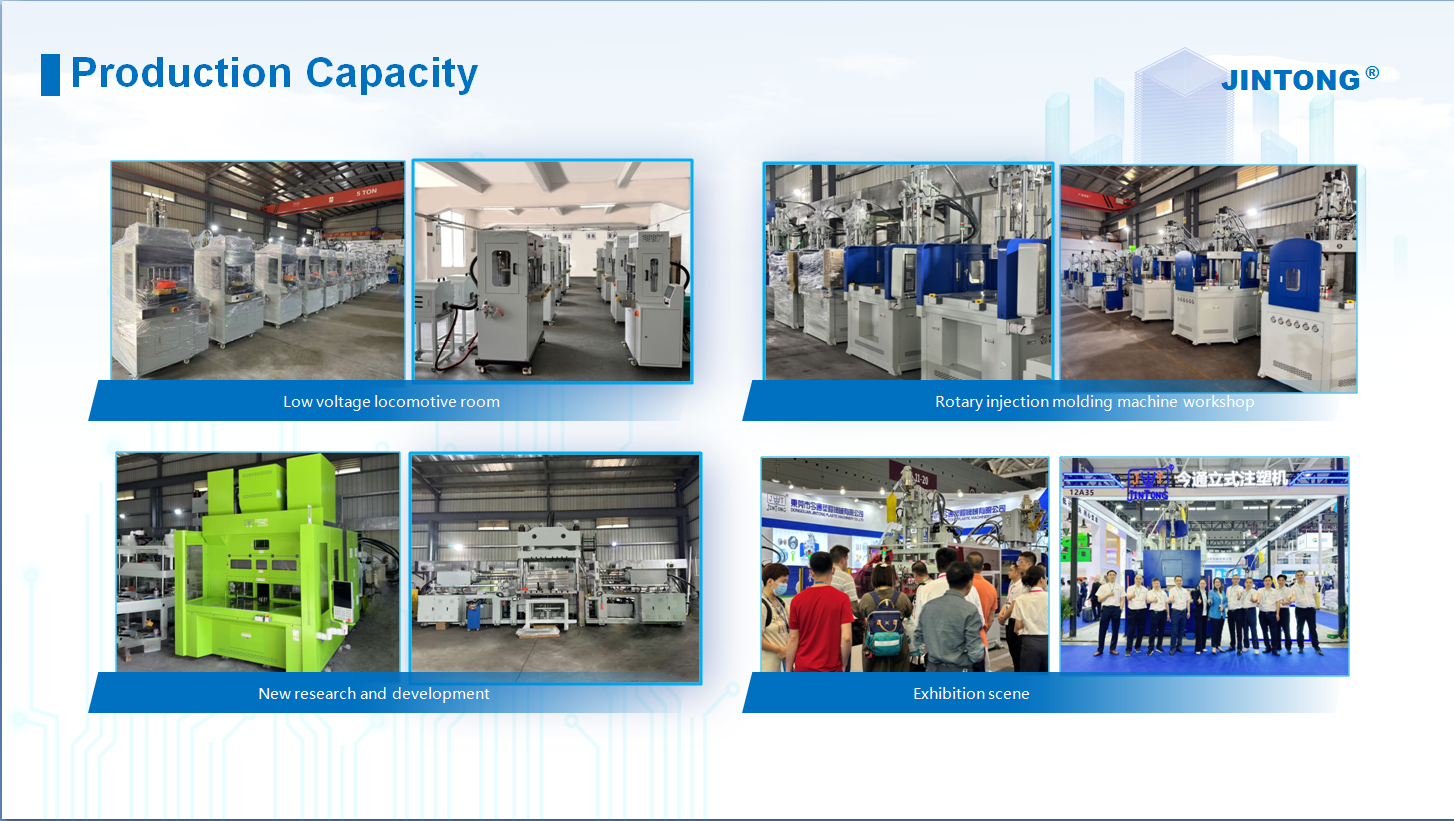

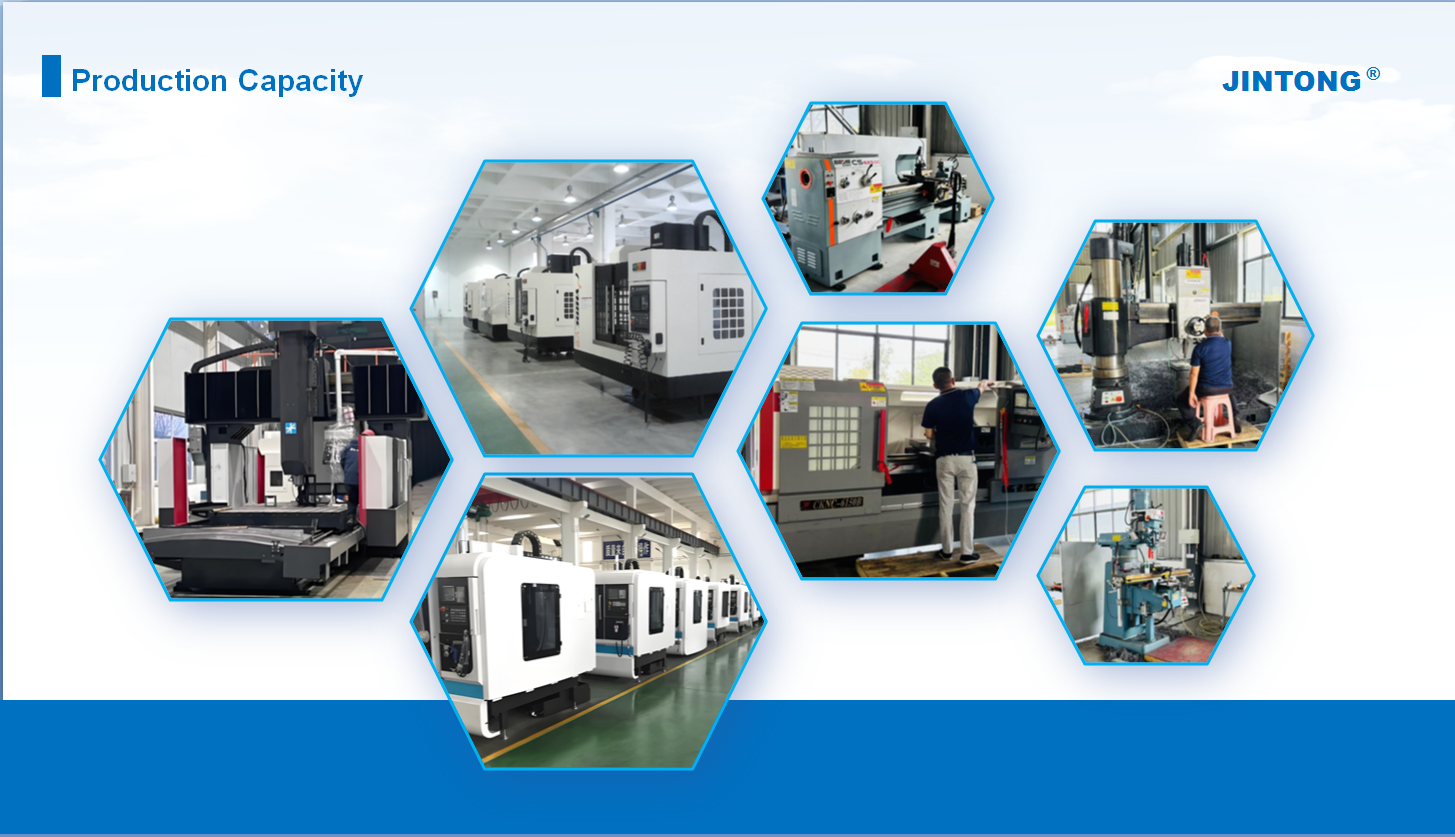

FACTORY PROFILE

TRADE SHOW PARTICIPATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Q: Are you trading company or factory?

A: We are factory to produce vertical injection molding machine more than 20 years.

Q: What is your machine warranty period?

A: 1 year against BL on board time
